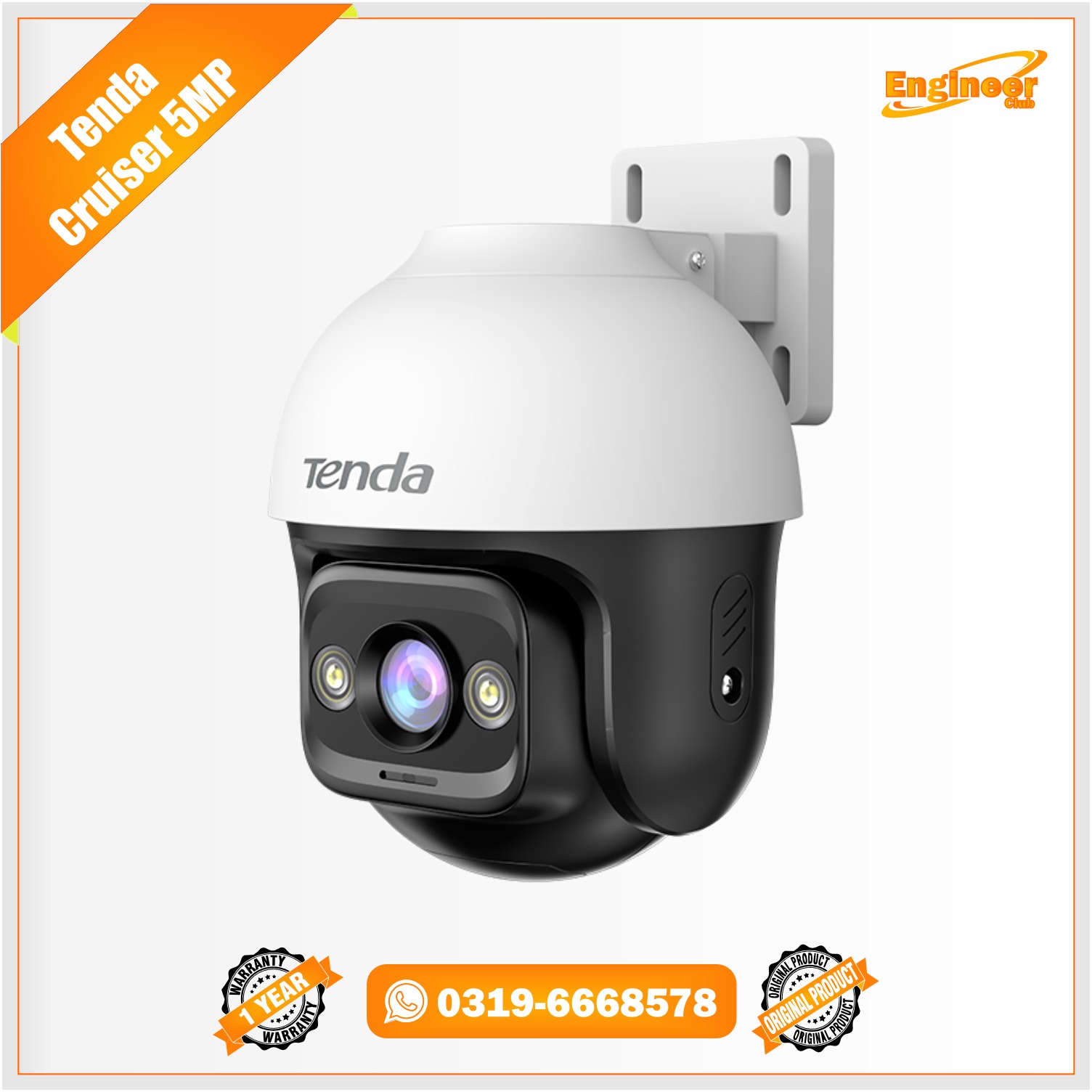

5MP Outdoor Wi-Fi Pan/Tilt Camera
Image Sensor:
1/3 Progressive Scan CMOS sensor
Day and Night:
ICR type
Lens
Focal Length:
4mm
Aperture:
F1.6
FOV:
Horizontal FOV: 81.6°, Vertical FOV: 50°, Diagonal FOV: 89°
Illuminator
Supplementary Light:
4 IR Lights, 4 Spotlights
Supplementary Light Distance:
Up to 30 m/100 ft (depending on environment)
IR Wavelength:
850nm
Night Vision Mode:
Smart Mode, Full Color Mode, Black & White Mode
Video
Video Encoding Format:
H.265, H.264
Main Stream Resolution:
2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution:
640 × 360
Frame Rate:
1-30fps,Default 20fps
Bit Rate:
512kbps — 4096kbps
Bit Rate Control:
CBR,VBR
Audio
Audio Encoding Format:
G.711A, G.711U, AAC
Audio Sampling Rate:
8 kHz
Audio Communication:
Two-way Audio, Voice Input
Image Enhancement:
DWDR, BLC, HLC, 3D DNR
Privacy Mask:
4 Areas
Network
Ethernet Port:
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF:
Support
Protocols:
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Client:
TDSEE (mobile phone), TDSEE STUDIO (PC)
Web Browser:
Chrome, Edge, Opera
Pan&Tilt
Pan Movement Range:
0°–355°
Tilt Movement Range:
0°–90°
Preset:
6
Patrol:
Panoramic Patrol, Preset Patrol
Wi-Fi
Antenna:
Internal antenna
Wireless Standard:
IEEE 802.11 b/g/n/ax
Transmission Rate:
Up to 287Mbps
Channel Width:
20/40 MHz
Modulation:
DSSS/OFDM/OFDMA
Frequency Band:
2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power:
2.4GHz: <0.1W(EIRP)
Security:
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Alarm
Smart Detection:
Motion Detection, Tampering Detection, Human Detection, Vehicle Detection
Smart Linkage:
Sound&light Alert, Human Tracking
DIY Audio:
3 Customized Audios
Interface
Audio Input:
Built-in MIC, adjustable microphone volume
Audio Output:
Built-in Speaker, 83 dBA (Alarm sound at 1 meter), adjustable sound level.
Storage:
Built-in Micro SD Card Slot, Up to 512GB
Reset Button:
Support
LED Indicator:
Dual Color (red & blue)
LED Indicator
### General
Power:
12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
Material:
Plastic
Smart Integration:
Amazon Alexa
Product Dimension:
146mm x 120mm x 120mm (5.7” × 4.7” × 4.7” )
Package Dimension:
251 mm x 167 mm x 131 mm (9.9” × 6.6” × 5.2” )
Product Weight:
370g (0.82lb)
With Package Weight:
820g (1.81lb)
Protection Level:
IP65
Installation Method:
Wall Mounting, Ceiling Mounting, Pole Mounting
Certification:
CE, RoHS, FCC, RCM, UKCA
Temperature:
Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity:
Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)
Package Contents:
Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
